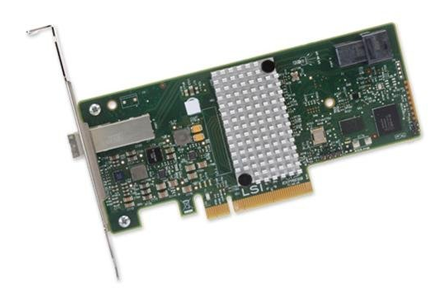

Broadcom SAS 9300-4i4e
Outfit your storage server for all occasions with internal and external 12Gb/s SAS storage
Click Here to Jump to Pricing!
Overview:
The SAS 9300 8 and 4-port, 12Gb/s SAS host bus adapter family provides increased connectivity and maximum performance for high-end servers and appliances within internal storage, or connecting to large scale storage enclosures.
The SAS 9300 HBA family is based on the SAS 3008 IO controller, integrating the latest enhancements in SAS and PCI Express® technology. Each host bus adapter also supports 8 or 4 SAS ports operating at 12Gb/s data transfer rates, and can reach over 1 million IOPs. The 9300 adapter family supports 8 PCI Express lanes that comply with the latest PCI Express 3.0 specifi cations. In addition, these adapters are backwards compatible with previous SAS and PCIe generations through automatic negotiation, and provide SAS data transfer rates of 12, 6, and 3 Gb/s per lane, and SATA data transfer rates of 6 and 3Gb/s per lane. Broadcom provides a broad suite of industry standard operating system drivers.
Broadcom Storage by LSI
Broadcom products serve four primary target markets: wireless communications, wired infrastructure, enterprise storage, and industrial. Broadcom Storage by LSI™ off ers the industry’s broadest portfolio of storage solutions, backed by decades of experience and trusted by the world’s leading server and storage suppliers. Broadcom provides the building blocks for storage solutions that help customers understand, prioritize, store and protect critical data.
The Broadcom 12Gb/s SAS portfolio includes MegaRAID® controller cards, host bus adapters (HBAs), advanced software options, Syncro® shared DAS solutions and SAS storage ICs, including RAID-on-Chip (ROCs), I/O controllers and expanders.
Fusion-MPT™ Architecture
Fusion-MPT architecture marks the next generation of I/O architecture designed to deliver the highest performance available today while reducing time to market, integration, and certifi cation time. Fusion-MPT devices are high performance, cost-eff ective protocol controllers that represent the newest system- level integration technology in intelligent I/O processors from Broadcom.
Features and Benefits:
- Eight/four ports of 12Gb/s SAS + SATA ports
- Eight lanes of PCI Express 3.0
- Low-profile form factor
- Mini-SAS HD connectors
- SAS 3008 12Gb/s SAS+SATA controller
- Supports SSDs, HDDs, and tape drives
Key Advantages
- Provides connectivity in a low-profi le form factor
- 8 lanes of PCI Express 3.0 provides fast signaling for high bandwidth applications
- High performance with 12Gb/s SAS data transfer rates
Specifications:
| SAS 9300-4i4e Host Bus Adapter | |
|---|---|
| I/O Controller | SAS 3008 Fusion MPT 2.5 |
| Port Count | 4 port ext/4 port int |
| Connectors | Mini SAS HD SFF8644 One (x4), SFF8643 One (x4) |
| Storage Connectivity Data Transfer Rates | 12Gb/s SAS 3.0 Compliant |
| SAS Bandwidth | Half Duplex (x8 wide bus) 9600 MB/s |
| Port Configurations | 8 ea, x1 ports (individual drives) 2 ea, x4 wide port |
| Host Bus | x8 lane, PCIe 3.0 |
| PCI Data Burst Transfer Rates | Half Duplex x8, PCIe 3.0, 8000 MB/s |
| Form Factor | Low Profile |
| Physical Dimensions | 2.6” x 6.0” |
| Brackets | Full Height and low profile vented |
| Cable Support | Passive Copper Active Optical (Ext only) |
| LED Management | Reference SFF-8485 (SGPIO) compliant |
| Operating Voltage | +12V +/-8%; 3.3V +/-9% |
| PCI Power (Nominal) | 14.2W |
| Device Support | 1024 Non-RAID devices |
| Environmental | Operating: 0°C to 55°C Storage: -45°C to 105°C 5 to 90% Non-condensing Airflow: 200 LFM |
| MTBF | >2,800,000 hours |
| Regulatory Certifications | EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Korea (N-B 2-0001-404); Safety: EN60950; RoHS; WEEE |
| OS Support | Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD See http://www.lsi.com/support/pages/download-search.aspx for details on versions * The HBA supports Solaris 10 and Oracle® provides a built in driver; installation of an LSI driver is not required. For more information on the Oracle Solaris 10 driver and installation, sign in at the following Oracle link: https://support.oracle.com/ Contact Oracle support for Oracle driver or software support. |
| Warranty | 3 years; with advanced replacement option Free technical support at http://www.lsi.com/channel/support |
Documentation:
Download the Broadcom SAS 9300-4i4e Product Brief (PDF).
