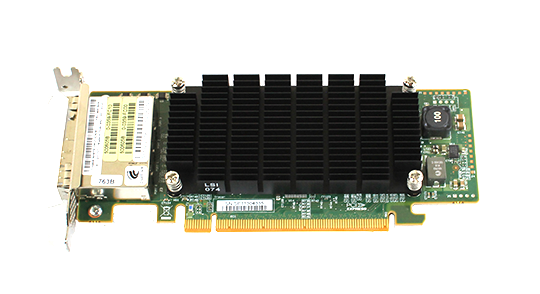

Broadcom SAS 9202-16e
Add internal and external 6Gb/s SAS and SATA connectivity and integrated RAID data protection

Broadcom SAS 9202-16e

Broadcom Products
Broadcom Host Bus Adapters
SAS 9202-16e
#SAS-9202-16E
Get a Quote!

Click Here to Jump to Pricing!

Overview:

The LSI SAS 9202-16e, quad port, host bus adapter provides high performance for high end servers and high performance storage applications. The LSI SAS 9202-16e provides 16 lanes of 6Gb/s SAS matched with 16 lanes of PCI Express 2.0 5Gb/s performance to eliminate bottlenecks. Internal performance is based on dual LSISAS2008 IO controllers that highly integrate the latest enhancements in PCI Express and SATA technology and supports up to 1024 SAS or SATA devices.

The LSI SAS 9202-16e has four (x4) external HD mini SAS connectors (SFF8644) enabling a low profile solution which provide SAS and SATA data transfer rates of 1.5, 3 and 6Gb/s per lane through automatic speed negotiation that can achieve over 700,000 IOPs. Enhanced features include T-10 Protection Information Model for early detection of and recovery from data corruption, and Spread Spectrum Clocking (SSC) for minimal EMI.

SAS Leadership

LSI offers the broadest SAS product portfolio in the industry with true end-to-end solutions including controllers, expanders, active-active multiplexers, ROCs, host bus adapters, RAID solutions, and external storage. LSI’s proven SAS core has completed extensive stress and interoperability testing resulting in the industry’s most robust, interoperable solution.

LSI has supplied leading edge serial technology to systems throughout the world for over seven generations, making LSI the most experienced enabler of serial interconnect for storage in the world. Integrators can be assured that their LSI adapter is providing the most advanced and robust serial technology available.

Fusion-MPT™ Architecture

The LSI SAS host bus adapters are based on the Fusion MPT™ architected SAS controllers, which implements LSI’s Fusion-MPT (Message Passing Technology) architecture. Each controller features embedded PowerPC™ processors that deliver maximum host CPU offload. The built-in intelligence enables LSI to publish a single binary OS driver to operate any Fusion MPT controller or adapter. The architecture enables high performance, reduced software development, and faster time to market.

Features and Benefits:

  • 16 external 6 Gb/s SAS+SATA ports
  • 16 lanes, PCI Express 2.0
  • Low profile form factor design
  • Four x4 external HD mini-SAS connectors (SFF8644)
  • Two LSISAS2008 6Gb/s SAS+SATA Controllers
  • Supports up to 1024 SAS or SATA end devices
  • Supports SSDs, HDDs and tape drives

Key Advantages

  • Maximum connectivity and performance in a low profile form factor
  • 16 lanes of PCI Express 2.0 provides faster signaling for high-bandwidth applications
  • High performance with 6Gb/s data transfer rates

Specifications:


SAS 9202-16e Host Bus Adapter
I/O Controller LSISAS2008/ Fusion MPT 2.0
Storage Connectivity ; Data Transfer Rates 16 ports; 6Gb/s SAS 2.0 compliant
SAS Bandwidth Half Duplex
600 MB/s per lane
Port Configurations 16 ea, x1 ports (individual drives)
4 ea, x4 wide ports
2ea , x8 wide ports
Host Bus x16 lane, PCI Express 2.0 compliant
Physical Dimensions Low Profile (2.7” x 6.6”)
Connectors Four HD mini-SAS external connectors (SFF8644)
Brackets Full height and low profile
Cable Support Passive, Active Copper
PCI Card Type 3.3 V Add-in Card
Operating Voltage +12V +/-8%; 3.3V +/-8%
PCI Power (Nominal) 17W typical (Airflow min 200 LFM)
Device Support 1024 Non-RAID SAS/SATA devices
Environmental Operating Storage
0°C to 55°C
5 to 90% Non-condensing
-45°C to 105°C
5 to 90% Non-condensing
MTBF >1,000,000 hours
Regulatory Certifications EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024);
Australia/ New Zealand (AS/NZS 3548); Safety: EN60950; RoHS; WEEE
OS Support Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware
See http://www.lsi.com/channel/ChannelDownloads for details on versions
Warranty 3 years; with advanced replacement option
Free technical support at http://www.lsi.com/channel/support

Documentation:

Download the Broadcom SAS 9202-16e Product Brief (PDF).
