Broadcom SAS 9207-8i
Maximize internal connectivity for mid-range applications in rack-mount servers
Click Here to Jump to Pricing!
Overview:

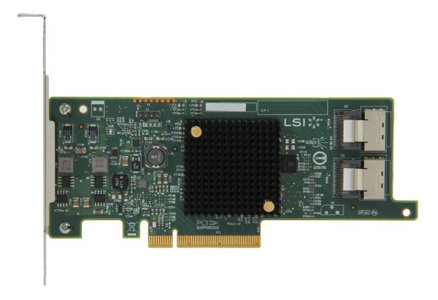

Broadcom SAS 9207-8i host bus adapter provides high performance for internal drive connectivity in 1U/2U servers and workstations. The SAS 9207-8i provides 8 lanes of 6Gb/s SAS and is matched with 8 lanes of PCI Express (PCIe) 3.0, 8Gb/s performance to eliminate any performance bottlenecks. Performance is based on the SAS 2308 6Gb/s SAS IO Controller that highly integrates the latest enhancements in PCIe and SAS technology.
The SAS 9207-8i has two (x4) internal mini-SAS connectors (SFF8087) and provides SAS and SATA data transfer rates of 1.5, 3, and 6Gb/s per lane and can achieve over 650K IOPs.
Storage by LSI
Broadcom products serve four primary target markets: wireless communications, wired infrastructure, enterprise storage, and industrial. Broadcom Storage by LSI offers the industry’s broadest portfolio of storage solutions, backed by decades of experience and trusted by the world’s leading server and storage suppliers. Broadcom provides the building blocks for storage solutions that help customers understand, prioritize, store and protect critical data.
The Broadcom SAS portfolio includes MegaRAID® controller cards, host bus adapters (HBAs), advanced software options, Syncro® shared DAS solutions and SAS storage ICs, including RAIDon- Chip (ROCs), I/O controllers and expanders.
Fusion-MPT™ Architecture
Fusion-MPT architecture marks the next generation of I/O architecture designed to deliver the highest performance available today while reducing time to market, integration, and certification time. Fusion-MPT devices are high performance, cost-effective protocol controllers that represent the newest system- level integration technology in intelligent I/O processors from Broadcom.
Features and Benefits:
- 8 internal 6Gb/s SAS+SATA ports
- 8 lanes, PCI Express 3.0
- Low profile form factor design
- Two x4 internal mini-SAS connectors (SFF8087
- SAS 2308 6Gb/s SAS+SATA Controller
- Supports up to 256 SAS or SATA end devices
- Supports SSDs, HDDs and tape drives
Key Advantages
- Provides internal connectivity in a low profile form factor
- 8 lanes of PCIe 3.0 provides fast signaling for high-bandwidth applications
- High performance with 6Gb/s data transfer rates
Specifications:
| SAS 9211-8i Host Bus Adapter | ||
|---|---|---|
| I/O Controller | SAS 2308/ Fusion MPT 2.0 | |
| Storage Connectivity ; Data Transfer Rates | 8 ports, 6Gb/s SAS 2.1 Compliant | |
| SAS Bandwidth | Half Duplex 600 MB/s per lane |
|
| Port Configurations | 8 ea, x1 ports (individual drives) 2 ea, x4 wide port |
|
| Host Bus | x8 lane, PCI Express 3.0 compliant | |
| PCI Data Burst Transfer Rates | Half Duplex x8, PCIe, 8000 MB/s |
|
| Physical Dimensions | Low Profile (2.6” x 6.6”) | |
| Connectors | Two mini-SAS internal connectors (SFF8087) | |
| Brackets | Full height and low profile | |
| Cable Support | Passive Copper | |
| PCI Card Type | 3.3 V Add-in Card | |
| Operating Voltage | +12V +/-8%; 3.3V +/-8% | |
| PCI Power (Nominal) | 9.8W | |
| Device Support | 256 Non-RAID SAS/SATA devices | |
| Environmental | Operating | Storage |
| 0°C to 55°C 5 to 90% Non-condensing |
-45°C to 105°C 5 to 90% Non-condensing |
|
| MTBF | >2,000,000 Hours | |
| Regulatory Certifications | EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950; RoHS; WEEE |
|
| OS Support | Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware See http://www.lsi.com/support/pages/download-search.aspx for details on versions |
|
| Warranty | 3 years; with advanced replacement option Free technical support at http://www.lsi.com/support |
|
Documentation:
Download the Broadcom SAS 9207-8i Product Brief (PDF).
